A parent stands in the kitchen, asks their teenager to take off a loose sweatshirt, and records a short video with a phone. A few seconds later, coloured landmarks appear along the back, the shoulders, and the hips, turning an ordinary household moment into a structured AI scoliosis detection screen. That shift matters because scoliosis has always been about timing, not just measurement, and camera-based tools can now check body alignment far more often than a clinic schedule allows.
The promise is simple to describe and harder to do well. AI posture analysis does not see vertebrae directly; it reads the shape of the body from the outside, then estimates whether the surface pattern suggests a spinal curve that needs attention. For families, that means fewer blind spots between visits. For therapists and clinicians, it means a quicker way to notice change without reaching for an X-ray every time.
When a Phone Camera Becomes a Spine Scanner
A parent does not need special equipment to begin. A smartphone, a steady stance, and a short, clear video can give software enough detail to map body landmarks and look for asymmetry. That is the practical shift behind computer vision scoliosis tools; they turn a device already in the home into a repeatable screening aid.
Why this feels different from older screening
Traditional scoliosis screening has relied on the forward-bend test and standing radiographs. Those methods still matter, but they capture only a single visit, and mild curves can go unnoticed between appointments. A phone camera changes the rhythm because it can be used again without radiation.
The California hospital pilots show why that matters. Children's Hospital Los Angeles reported that it was testing a smartphone-based AI system for home scoliosis monitoring, beginning with 10 patients and planning to reach up to 60 young people with adolescent idiopathic scoliosis. The workflow used a 30-second phone video recorded by a parent or caregiver, then converted it into 3D tracking of spinal curve progression. Cedars-Sinai also described a paediatric pilot using a 45-second mobile video for radiation-free monitoring and brace-compliance tracking, with the video turned into a 3D model and analysed to estimate the Cobb angle. A separate Cedars-Sinai validation report on PubMed supports the Cobb-angle context for that type of pipeline. The clinical message is direct: the camera does not replace imaging; it fills the gap between clinic visits and can flag a change earlier.
A useful way to frame it is simple: the phone acts like a frequent checker at home, while imaging stays the reference for diagnosis and treatment decisions.
Practical rule: if the tool is meant for home use, treat it as a monitoring layer, not a final diagnosis.

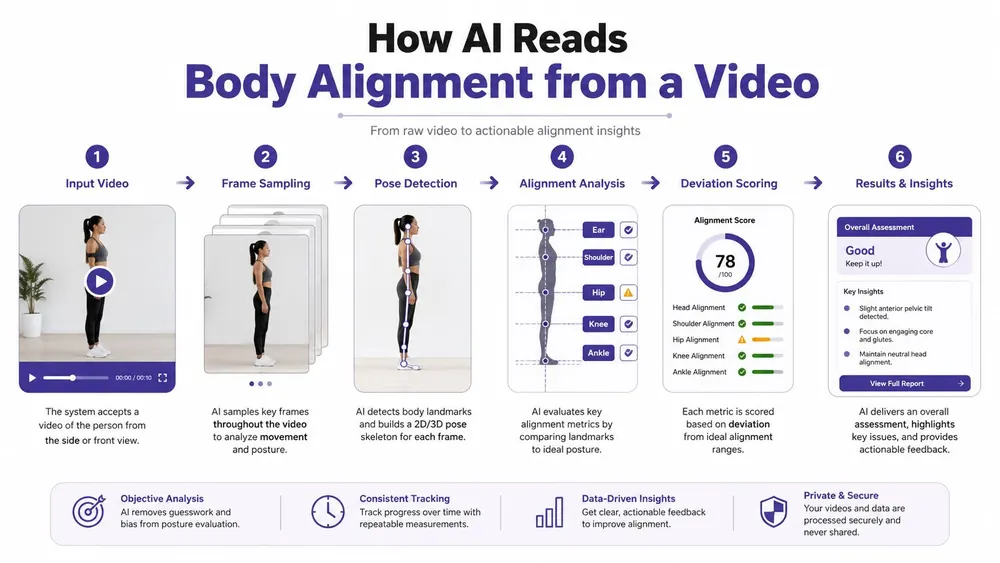

How AI Reads Body Alignment from a Video
A pose-estimation model begins by locating shoulders, waist, pelvis, and back surface on each frame. From those points, the software builds a map of body alignment and looks for patterns that often accompany scoliosis, such as uneven shoulders, trunk shift, scapular prominence, or pelvic tilt. The result is geometry built from visible cues, frame by frame.
From pixels to landmarks to a usable estimate
The first step is landmark detection. Once the key points are identified, the software can trace how the upper body sits in space and how that shape changes across the video. If depth information is available, or if the app combines multiple frames, the system can reconstruct a rough 3D model of the trunk instead of relying on a flat photo.
That matters because the algorithm is not reading vertebrae directly. It is reading surface asymmetry and turning it into an estimate that correlates with curvature. In practice, that estimate often functions like a Cobb angle proxy, because trunk tilt, shoulder imbalance, and axial rotation tend to move with curve progression in growing adolescents. A Deep-learning study on bare-back images found an AUC of 0.93 for identifying scoliosis, exceeding 0.92 for a deputy chief physician, and AUC 0.95 versus 0.96 for severe scoliosis identification, which shows how body-alignment cues can be quantified from images at physician-comparable levels.
The strongest systems also need a stable capture pipeline. Standard pose, controlled lighting, and minimal movement matter because the model has to separate real posture features from camera noise. A phone video helps by giving the system more frames to compare, but only if the body is recorded in a consistent way.
The software is not replacing anatomy. It is converting visible alignment into a repeatable signal that can be tracked over time.
Why depth and posture matter more than raw pixels
Plain RGB pixels help, but depth cues make it easier for the system to tell whether a shoulder is really higher or only appears that way because of camera angle. University of Ottawa and CHEO work explored smartphone images with depth-sensor imagery for adolescent idiopathic scoliosis screening, using modern phone capture rather than specialised imaging hardware.
The practical takeaway is straightforward. The video creates a measurable body shape, the model turns that shape into landmarks, and those landmarks support a curvature estimate that can be compared across visits. This surface-based pipeline is what separates camera AI from imaging AI, a distinction that matters when you are choosing between measurement tools.
Imaging AI vs Camera-Based AI Pipelines
Two AI pathways show up in scoliosis care, and they answer different questions. Imaging AI reads X-rays directly and computes the Cobb angle from vertebral endplates. Camera-based AI reads the body surface from a phone video and estimates whether trunk shape is changing enough to justify follow-up.
| Dimension | Imaging AI (X-ray) | Camera-Based AI |
|---|---|---|
| Input | Radiograph | Smartphone photo or video |
| What it measures | Vertebral alignment and true Cobb angle | Surface asymmetry and Cobb-angle estimate |
| Radiation | Uses ionising radiation | Radiation-free |
| Best use | Definitive measurement, surgical planning | Screening, monitoring, triage |
| Setting | Clinic or hospital imaging suite | Clinic room, school, or home |
| Strength | Direct view of the spine | Repeatable, easier access |
That difference matters because the two pipelines are built on different kinds of evidence. In radiographic work, analysts have reported a Spearman correlation of 0.89 with clinical reports and a mean difference of 7.34 degrees. In a later 3D surface-topography app study, the reported correlation was 0.922 with an MAE of 5.9 degrees across 51 test scans. Those results show that camera-based systems can track meaningful change, but they are still estimating from the outside of the body rather than measuring the spine itself.
A useful way to separate the two is to ask what decision needs to be made. If the question is, “What is the exact vertebral angle today?”, imaging AI fits better, especially for treatment planning or a firm baseline. If the question is, “Has this child's alignment shifted enough to justify a visit or an X-ray?”, camera-based AI is usually the better first pass.
Working rule: use imaging AI for measurement, camera-based AI for surveillance.
The pipelines are layered, not competing. A home video can flag a curve that seems to be drifting between radiographs, and a clinic X-ray can confirm what the camera suggested. That is why a phone app can be useful without pretending to replace imaging.
For a broader clinical framing, see the related guide on AI spine analysis for clinical use.
What Sensitivity and Specificity Actually Mean for Care
A screening tool can feel accurate and still be unhelpful if it sends the wrong children down the wrong path. That's why sensitivity and specificity matter more than glossy demos. Sensitivity is the chance the tool catches a real curve, while specificity is the chance it clears someone who doesn't have one.
Why the trade-off changes the workflow
A multicentre prospective diagnostic study including paediatric patients from France and Canada reported that a smartphone application using 3D surface topography could screen for idiopathic scoliosis with 100% sensitivity and 89% specificity at the more than 10° curve threshold. That profile is strong for triage, because missing fewer cases matters when the goal is to decide who needs specialist review before radiographic confirmation.
The same logic applies in the other direction. If specificity is too low, clinics get buried in unnecessary referrals and families face avoidable stress. A screening tool with stronger sensitivity than specificity is usually acceptable at the front of the pathway, but only if the next step is confirmatory assessment.
How this plays out in a real clinic
If adolescent idiopathic scoliosis is uncommon in a general screening group, even a good test will produce more false alarms than families expect. That is not a flaw unique to AI; it's a basic property of screening. The result is that predictive value depends on who is being screened, not just on the software's headline score.
For practical use, the question is less “Is the app accurate?” and more “What happens after the result?”
| Metric | What It Measures | High-Value Scenario | Risk When Low |
|---|---|---|---|
| Sensitivity | Real curves caught | Screening and early triage | Missed cases, delayed bracing |
| Specificity | Non-cases cleared | Reducing unnecessary referrals | Too many false alarms |
| Threshold choice | Where the app draws the line | Matching tool to clinic goal | Wrong balance for the population |
The Canadian scoliosis resources also highlight the follow-up problem that many articles skip. Screening can identify who needs monitoring, but it doesn't tell families when to refer, brace, or image. That is the clinical question, and it's why threshold setting matters as much as model quality.
For a deeper metrics breakdown, the companion article on scoliosis detection accuracy and key metrics is useful reading.
From Clinic Check-Up to Kitchen-Counter Monitoring
In a clinic, the workflow is straightforward. A child stands in a standard pose, staff capture the image or video, the system marks landmarks, and the clinician compares the estimate with previous visits. If the trend looks stable, the next step may be observation. If the line bends the wrong way, radiographs or an in-person review follow.
At home, the rhythm changes. A parent or caregiver captures a repeat video on a schedule, usually in the same spot, with similar clothing and lighting. The software then produces a trend report, and anything that looks unusual can be escalated to the care team. That way, the family is not waiting months to discover that a posture change started earlier.
A practical home routine
A good home workflow is built around consistency, not cleverness.
Pick one location: A plain wall, a steady camera height, and the same floor area reduce noise in the measurement.
Use similar clothing: Fitted clothing makes body landmarks easier to read than loose layers.
Keep the pose standard: The app should ask for the same stance each time so the comparison is fair.
Review trends, not single frames: One odd capture means less than a pattern that repeats.
Escalate clearly: If the app flags change, the care team should decide whether an exam or imaging is needed.
The point is not to turn a kitchen into a radiology room. It's to catch change between planned visits, before a child's curve has had weeks or months to drift without attention.
Where the app fits in the care pathway
In a clinic setting, a tool like PosturaZen can sit between routine check-ups and full radiographs, giving clinicians a repeatable body-alignment record to review alongside symptoms and exam findings. It belongs in the same conversation as any front-end triage system, not as a standalone verdict.
Families who want a plain-language overview of posture workflow can also read AI to detect scoliosis.
A useful privacy resource for organisations handling biometric data is the overview on biometric data compliance in Washington, which is relevant context when vendors process face or body video.

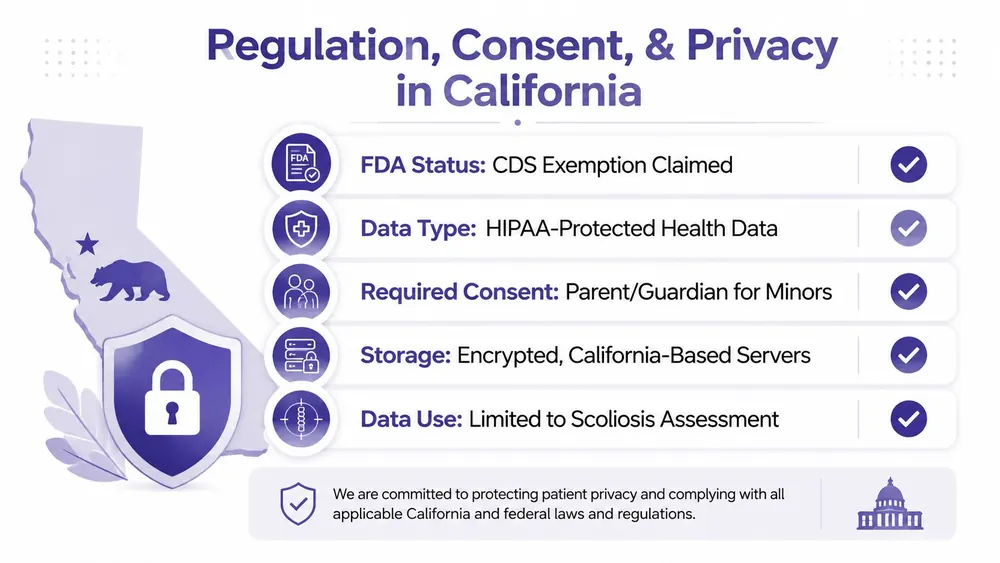

Regulation, Consent, and Privacy in California
A phone video used for AI scoliosis detection is not just a measurement problem. In California, it also raises questions about consent, storage, and who is allowed to handle a child's body data. The first decision is how the tool is presented, as clinical decision support, a medical device, or a general wellness app, because that framing changes the duties attached to it.
What parents and clinicians should ask
California school screening rules establish a consent layer that extends to AI tools, and state law has required parental opt-out since 1982. Public school districts were required to screen every female pupil in grade 7 and every male pupil in grade 8, using qualified personnel or trained certificated staff. The California Department of Education guidance notes that parents or guardians may refuse consent.
For AI tools, the practical questions are straightforward:
Where is the video stored?
Does the image leave the device?
Is the model trained on minors' images?
Who can delete the record?
How are breach notifications handled?
Consent should be specific, not generic
Parents should give clear permission for a minor, and adolescents should be told what the app does in plain language when that makes sense. Families should know whether analysis happens on-device or in the cloud, whether a third party receives the footage, and whether the software keeps the record only for scoliosis assessment or reuses it for other purposes.
The California rules around children's data and medical information make that clarity even more important. If a vendor cannot explain storage location, retention periods, and deletion rights, families are being asked to trust the label instead of the workflow.
The safest habit is to treat the app like any other clinical data path. Ask who sees the video, where it lives, and what happens if the family wants it removed.
Where AI Scoliosis Detection Still Falls Short
Camera-based systems meet real-world friction fast. Lighting shifts, loose clothing, hair over key landmarks, and motion during capture can all weaken landmark detection. Skin tone variation can also make landmarks harder to see, so capture protocols matter as much as the model itself.
The curve itself can be hard to interpret
Scoliosis does not show up on a body-surface scan in one uniform way. Thoracic curves are often easier for surface tools to flag than high thoracic or compensatory curves, and double-major curves can blur angle estimates because the outside shape is more complex. A “no curve detected” result should never outweigh a clinician's physical examination.
The comparison point matters too. Phone-based estimates can support screening and tracking, but they carry a wider margin of error than low-dose radiographs or EOS imaging, because the camera reads the outside of the body rather than the spine. For that reason, AI scoliosis detection belongs in screening and monitoring, not in diagnosis.
Growth changes the stakes
Children and adolescents who are still growing are the group where timing matters most. A screen that misses a developing curve can delay follow-up, and a screen that overcalls one can create unnecessary worry. The result should be read alongside symptoms, exam findings, and earlier measurements.
Clinical rule: the camera can raise the question, but the clinician decides whether the curve is real, relevant, and changing.
Canadian scoliosis guidance points in the same direction. A Montreal-connected app was described in Canadian scoliosis resources as having screening performance around 0.92 sensitivity, 0.75 specificity, and AUC 0.94. That supports triage use, not a final diagnosis. It works as a filter, with clear limits.
Choosing an AI Scoliosis App Worth Trusting
The smartest way to judge a scoliosis app is to ask what decision it supports. If the output is just a pretty dashboard, that's not enough. If it gives a repeatable estimate, shows its validation, and explains when a human should step in, it's closer to a tool a clinic or family can use.
A simple buyer and clinician checklist
Look for these features before trusting any AI posture analysis platform:
Validation on the right population: The dataset should include adolescents, not just adults or mannequins.
Clinical ground truth: The app should show how its estimate compares with radiographs or other recognised measurements.
Clear operating range: You need to know what curve sizes and body types it handles well.
Data governance: Storage, retention, and deletion should be spelt out in plain language.
Consent controls for minors: Parental approval and age-appropriate assent should be built into the workflow.
Actionable output: The result should trigger a next step, not just display a score.
PosturaZen fits this category as one option to evaluate because it uses the phone camera to analyse spinal alignment, estimate Cobb angle, and track posture over time, which places it between routine check-ups and full imaging rather than pretending to replace them.
Questions that separate serious tools from marketing
Ask the vendor whether the capture requires a special camera, whether repeated scans can be compared side by side, and whether the app is designed for screening, monitoring, or diagnosis. If the company cannot answer those questions clearly, the software is not ready for clinical decision-making.
A responsible app should help a therapist, parent, or clinician notice change sooner, not create a false sense of certainty. That standard is high on purpose, because scoliosis care is about catching the right curve at the right time.
If you're comparing options for home monitoring or clinic triage, visit PosturaZen to see how smartphone-based scoliosis tracking is being used to bridge routine visits and clearer follow-up decisions. Use it as a reference point for what a careful, camera-based workflow should look like before you choose any AI scoliosis detection tool for your family or practice.
